低壓H橋驅動器G2056，G2056F11U臺灣致新新品熱售中

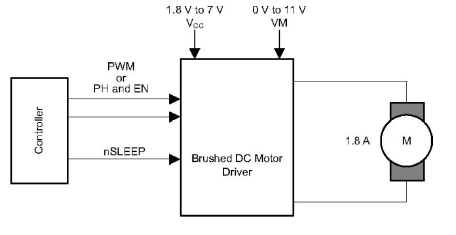

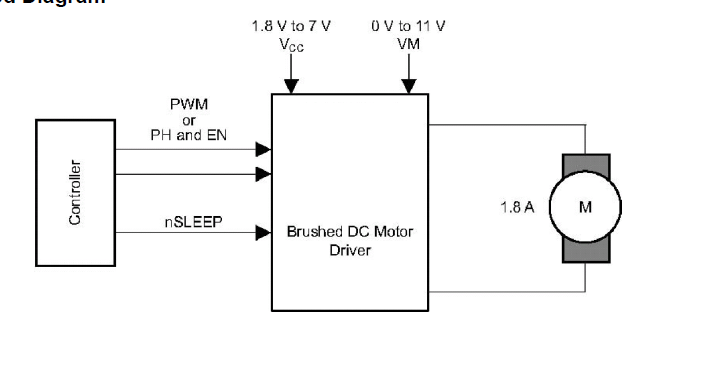

The G2056x family of devices provides an integrated motor driver solution for
cameras, consumer products, toys, and other low-voltage or battery-powered motion
control applications. The device can drive one dc motor or other devices like
solenoids.
The output driver block consists of N- channel power MOSFETs configured as an
H-bridge to drive the motor winding. Aninternal charge pump generates needed gate
drivevoltages.
The G2056x family of devices can supply up to 1.8A of
output current. It operates on a motor power supply
voltage from 0 to 11V, and a device power supply
voltage of 1.8V to 7V.

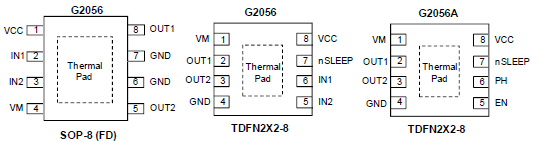

G2056F11U SOP-8 (FD)
G2056RC1U TDFN2X2-8
G2056ARC1U TDFN2X2-8
