臺灣致新新品熱銷雙H橋電機驅動器G2053，G2053FC1U原裝正品

產品型號：G2053FC1U

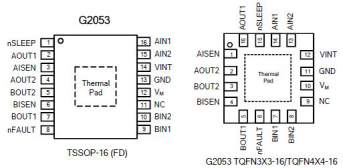

封裝：TSSOP-16

包裝：3000pcs/盤

產品特點：

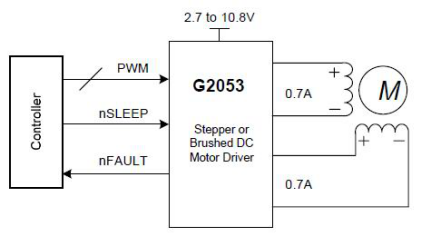

• Dual-H-Bridge Current-Control Motor Driver

    – Can Drive Two DC Motors or One Stepper Motor

    – Low MOSFET ON-Resistance: HS + LS 1735 mΩ

• Output Current Capability (at VM = 5V, 25°C)

    - TSSOP-16 (FD) Package

        – 0.7A RMS, 1A Peak per H-Bridge

        – 1.4A RMS in Parallel Mode

    - TQFN3X3-16 and TQFN4X4-16 Package

        – 0.6A RMS, 1A Peak per H-Bridge

        – 1.2A RMS in Parallel Mode

• Wide Power Supply Voltage Range 2.7 to 10.8V

• Integrated Current Regulation

• Easy Pulse-Width-Modulation (PWM) Interface

• 1.6μA Low-Current Sleep Mode (at 5V)

• TSSOP-16 (FD), TQFN3X3-16 and TQFN4X4-16 Package
