9A，600kHz高效率方案--G2263AV1U--

                                        G2263A帶輸出斷開的同步升壓轉換器

       The G2263 is a high efficiency, synchronous, current-mode, boost converter with output disconnect.

       The G22263 starts up from and input voltage as low as 1.9v, and maintains good

performance with input voltage higher than 2.8V. The integrated P-channel

synchronous rectifier improves efficiency and eliminated the need for an external

Schottky diode. This P-channel disconnects the output from the input during

shutdown.

      The G2263 provides a compact solution for a 5V output,4A load requirement,

using a supply voltage down to2.8V.

The G2263 is available in AQFN2x2-14 package.

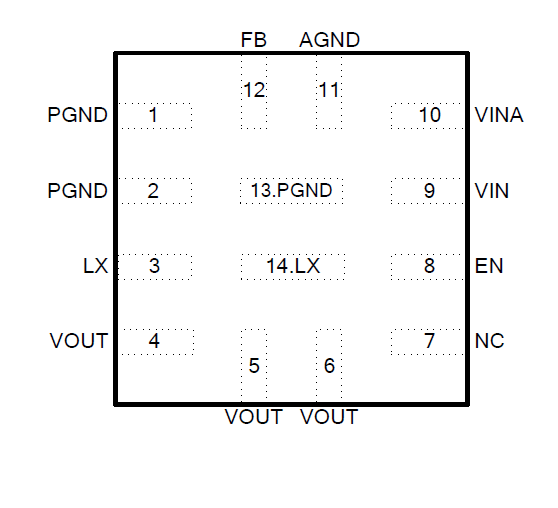

Pin Configuration：
