| 型號： | G2056RC1U |
| 廠 商： | 臺灣 |
| 品牌/商標: | GMT/致新 |
| 產品類別： | GMT- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
臺灣致新（GMT）新品熱銷低壓H橋驅動器G2056系列——G2056RC1U

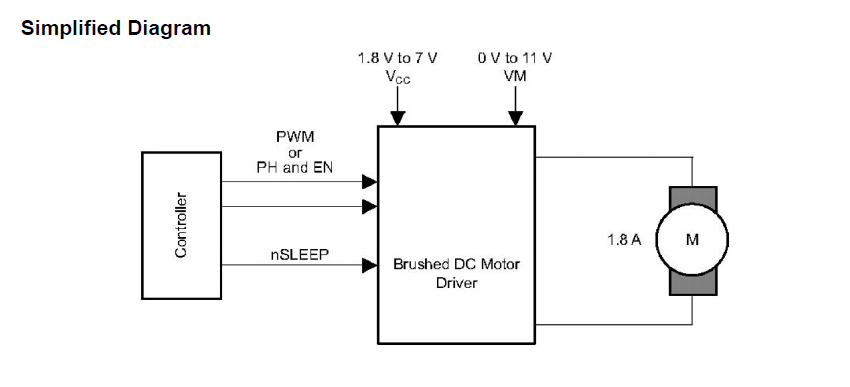

The G2056x family of devices provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one dc motor or other devices like solenoids. The output driver block consists of N- channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates needed gate drive voltages.
The G2056x family of devices can supply up to 1.8A of output current. It operates on a motor power supply voltage from 0 to 11V, and a device power supply voltage of 1.8V to 7V.

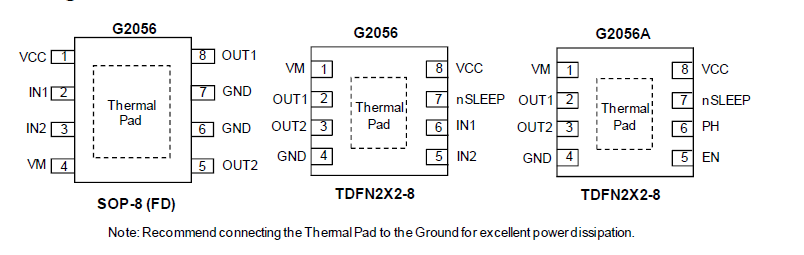

G2056F11U封裝結構圖：
