產品詳情

臺灣致新H橋電機驅動器G2057，G2057F11U科瑞芯深圳供應，

保證原裝正品，假一賠十！

      The G2057/G2057A provides a versatile motor driver solution with a variety of capabilities. The

device contains a full H-bridge which can be used to drive a brushed DC motor, one winding of a

stepper motor, or other devices such as solenoids. Two logic inputs provide directly interfacing to

controller circuits.

      The output stages use four N-channel power MOSFETs configured as an H-bridge. The

G2057/G2057A capable of peak output currents up to ±3.5A and operating voltages up to 40V.

A low-power standby mode is provided which shuts down internal circuitry to achieve a very low quiescent current draw.

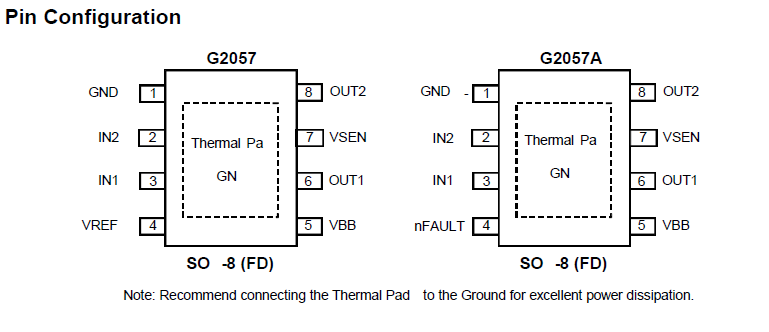

G2057F11U                SOP-8 (FD)

G2057AF11U                  SOP-8 (FD)

產品應用：

1.  Printers

2.  Industrial Automation

3.  Robotics
