產(chǎn)品詳情

臺灣致新G5329/A/B/C高效率同步Buck變換器，科瑞芯深圳熱銷

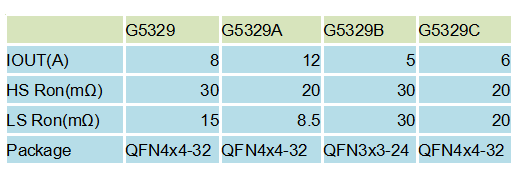

G5329QV1U           QFN4X4-32

G5329AQV1U        QFN4X4-32

G5329BQU1U        QFN3X3-24

G5329CQV1U        QFN4X4-32

產(chǎn)品特點：

• Ultra-High Efficiency

• Low Quiescent Current of 110μA

• Integrated 15mΩ at V5V=5V N-Channel MOSFET for Low Side

• Integrated 30mΩ at V5V=5V N-Channel MOSFET for High Side

• No Current-Sense Resistor (Lossless ILIMIT)

• Quasi-PWM with 100ns Load-Step Response

• 1% VOUT Accuracy Over Line and Load

• Programmable Switching Frequency

• 0.8V to 5.5V Adjustable Output Range

• 4.5V to 26V Adapter or Battery Input Range

• Integrated Boost Switch

• UVP (non-latch)

• Over Temperature Protection (non-latch)

• 3.3ms Soft-Start

• Power-Good Indicator

• Fixed 5V, 10mA Linear Regulator
