| 型號： | G2056A |
| 廠 商： | 臺灣 |
| 品牌/商標: | 致新（GMT） |
| 產品類別： | GMT- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
G2056/G2056A H-Bridge Motor Driver
產品型號：G2056A

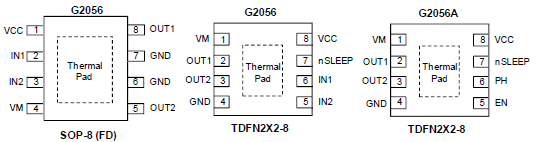

封裝：TDFN-8
包裝：3000pcs/盤
G2056A產品特性：
H-Bridge Motor Driver
– Drives a DC Motor or Other Loads
– Low MOSFET On-Resistance: HS + LS 280mΩ
1.8-A Maximum Drive Current
Separate Motor and Logic Supply Pins:
– Motor VM: 0 to 11 V
– Logic VCC: 1.8 to 7 V
PWM or PH-EN Interface
– G2056: PWM, IN1 and IN2
– G2056A: PH and EN
Low-Power Sleep Mode With 120-nA Maximum Sleep Current
– nSLEEP pin
Protection Features
– VCC Undervoltage Lockout (UVLO)
– Overcurrent Protection (OCP)
–Thermal Shutdown (TSD)
