臺灣致新 G2583BRV1U TQFN4X4-28 代理商主推

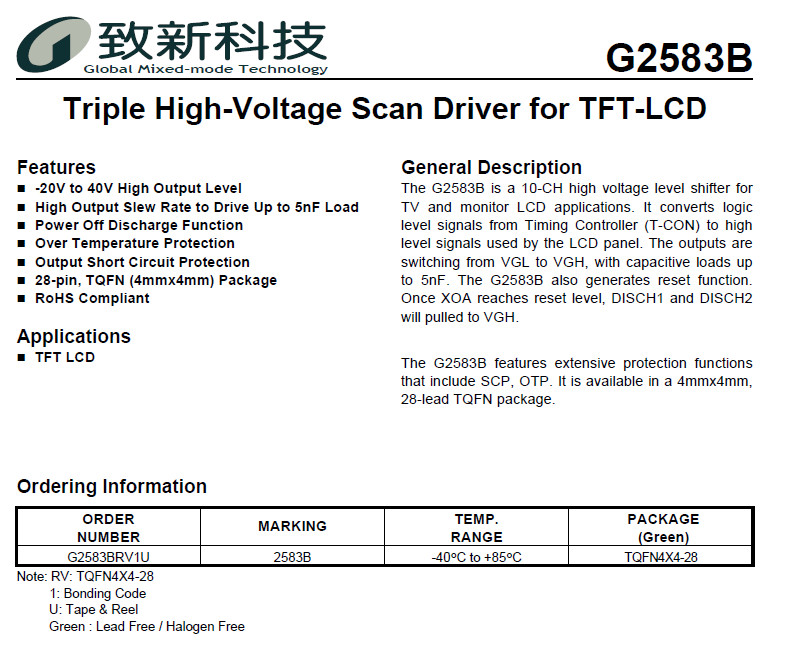

General Description
The G2583B is a 10-CH high voltage level shifter for
TV and monitor LCD applications. It converts logic
level signals from Timing Controller (T-CON) to high
level signals used by the LCD panel. The outputs are
switching from VGL to VGH, with capacitive loads up
to 5nF. The G2583B also generates reset function.
Once XOA reaches reset level, DISCH1 and DISCH2
will pulled to VGH.
The G2583B features extensive protection functions
that include SCP, OTP. It is available in a 4mmx4mm,
