| 型號： | ETA40561E8A |
| 廠 商： | 中國 |
| 品牌/商標: | ETA（鈺泰） |
| 產品類別： | 鈺泰/ETA- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
1.2A/16V全集成線性1 Cell鋰離子電池充電器
1.2A/16V Fully Integrated Linear Charger for 1 Cell Li-ion Battery
ETA40561 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA40561 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA40561. Build-in thermal feedback mechanism regulates the ch...
Features
16V Input Standoff Voltage
4.2V Charge Termination Voltage
2.93V Trickle Charge Threshold
Charge Current Programmable, Up to 1.2A
250nA BAT Current when No Charging
Soft-start Limits in-rush Current
ESOP8 Package

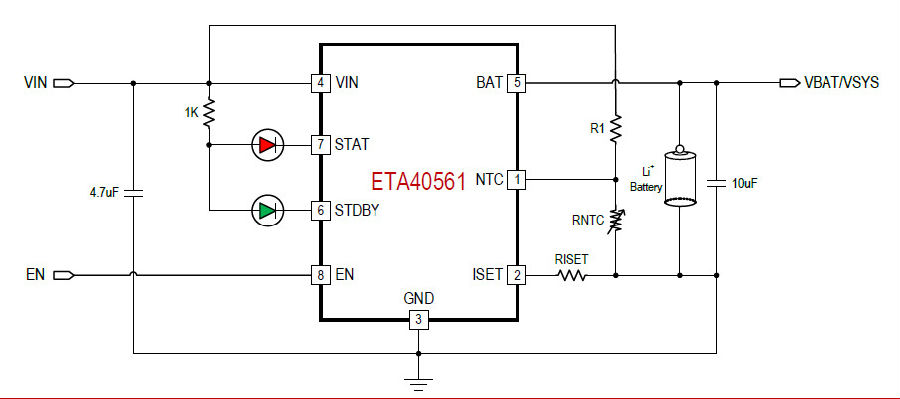

應用電路圖：
