| 型號： | G2225ARV1U |
| 廠 商： | 中國臺灣 |
| 品牌/商標: | GMT/致新 |
| 產品類別： | GMT- |
| 聯系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
General Description
The G2225 provide a complete power supply solution for wearable / sports-cam & IP-CAM application. It contains four dc/dc converters, one power switch and one low quiescent current LDO to power each critical blocks of the system, and is optimized for maximum battery life, featuring a low ground current when in standby mode operation. All channels DC/DC converters operate at selectable frequency of 1.5/3.0MHz to optimize size, cost, and efficiency. All Synchronous converters operate at pulse skipping mode at light load.

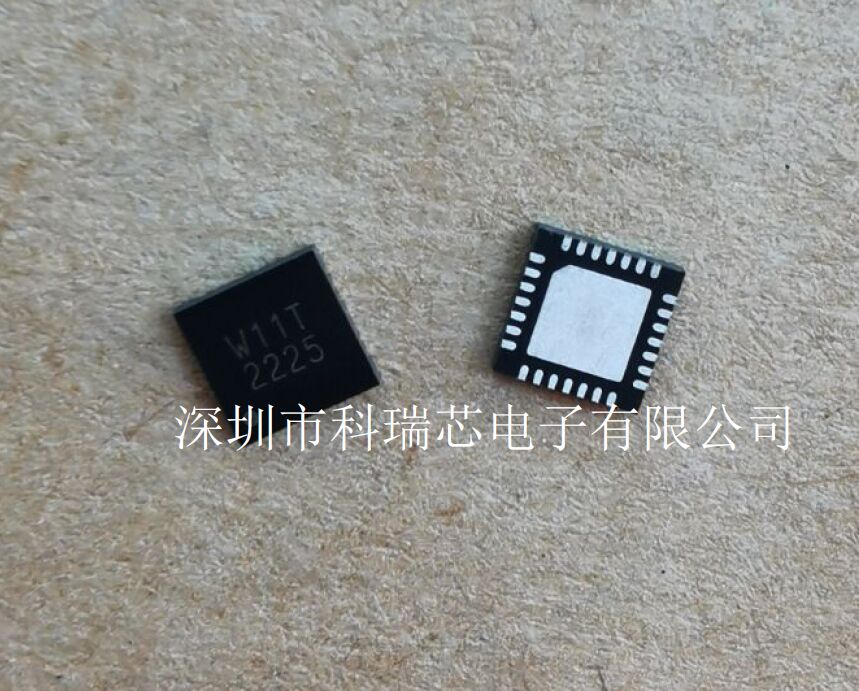

The G2225 is available in TQFN4x4-28 package.
Features
■ 2.8V ~ 5.5V Input Voltage Operation.
■ 95% Efficient DC/DC Converter
■ Built-in 4-ch synchronous buck converter, 1-ch power switch, and 1-ch low quiescent current LDO for RTC.
■ Bucks can be set to lower quiescent current at low load.
■ Low Power consumption (Sleep Mode) < 20μA.
■ 1.5/ 3MHz switching frequency.
■ Built-In Power ON/OFF Sequence for PMU.
■ Built-In Short Circuit Protection (SCP), Under Voltage Protection (UVP), and cycle-by cycle current limit for DC/DC Converters.
■ Real Time Clock
■ Built-In Thermal Shutdown Function.
■ Built-In VCC OVP Function.
■ TQFN4x4-28 Package.
Applications
■ Wearable/Sports camera
■ IP camera
■ DSC
