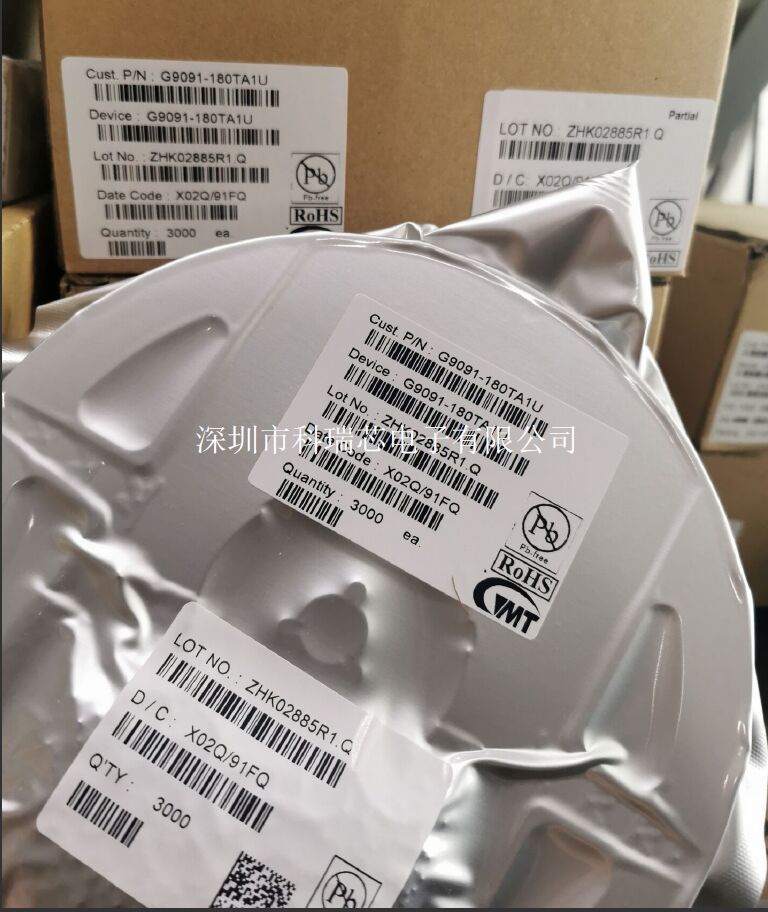

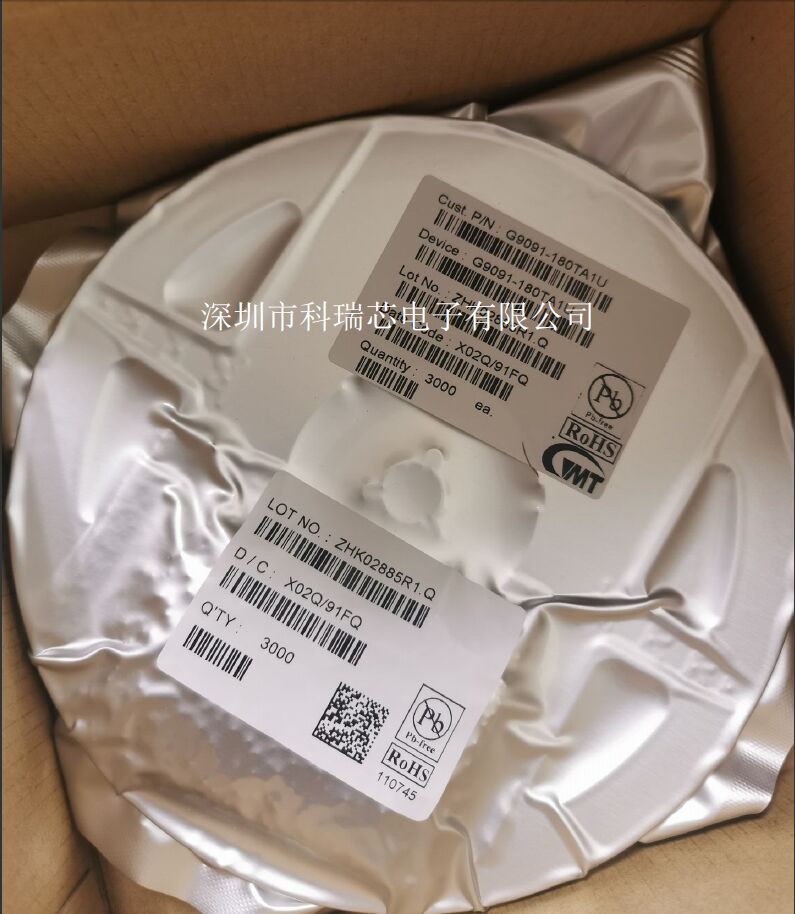

| 型號： | G9091-280TA1U |
| 廠 商： | 中國臺灣 |
| 品牌/商標: | GMT/致新 |
| 產(chǎn)品類別： | GMT- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
General Description
The G9091 is a low supply current, low dropout linear regulator that comes in a space saving SOT-353 package. The supply current at no-load is 100μA. In the shutdown mode, the maximum supply current is less than 1μA.
The over-current protection limit is set at 430mA typical. An overtemperature protection circuit is built-in in the G9091 to prevent thermal overload. These power saving features make the G9091 ideal for use in the battery-powered applications such as notebook computers, cellular phones, and PDA’s.
These devices feature a shutdown function and are offered in active low with auto discharge. The G9091 is specifically designed to employ ceramic output capacitors.
Features
● Low, 100μA No-Load Supply Current
● Guaranteed 300mA Output Current
● Dropout Voltage is 100mV @ 100mA Load
● Over-Temperature Protection and Short-Circuit Protection
● Max. Supply Current in Shutdown Mode < 1μA
● Stable with Low Cost Ceramic Capacitors
Applications
● Notebook Computers
● Cellular Phones
● PDAs
● Digital still Camera and Video Recorders
● Hand-Held Devices
● Bar Code Scanners
