G546B2P11Uf 致新USB電源管理芯片
Features
■ 87mΩ RDS(ON) (G546X1, G546X2) and 72mΩ RDS(ON) (G546X3, G546X4)
■ Available with 5 Versions of Current Limits with Foldback
■ Operating Range:2.7V to 5.5V
■ 400μS Typical Rise Time
■ Under voltage Lockout
■ 65μA Quiescent Supply Current
■ 1μA Maximum Shutdown Supply Current
■ Logic Level Enable Pin, Available with Active-High or Active-Low Version
■ No Reverse Current when Power Off
■ Deglitched Open-Drain Over-Current Flag Output (OC )

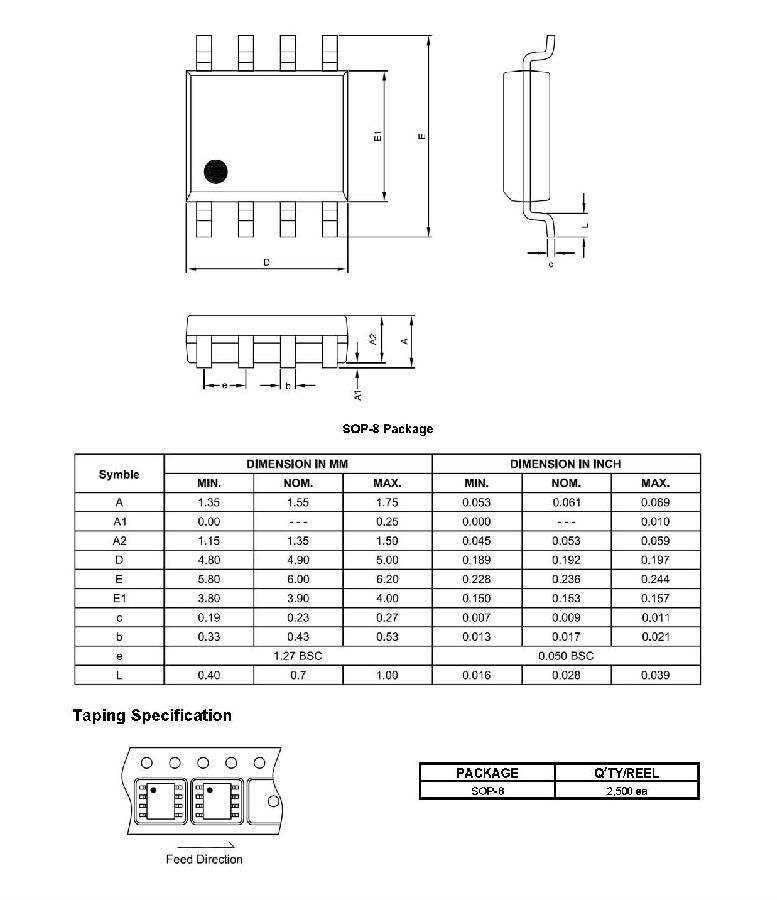

■ SOP-8 Package,MSOP-8 , MSOP-8 (FD) and TDFN3X3-8 Package
■ UL Approved_#E232223
■ Nemko IEC 60950-1 CB/CCA_scheme Certification Report #67291
Applications
■ High-Side Power Protection Switch
■ USB Power Management
■ USB Host and Self-Powered Bubs
■ USB Bus-Powered Hubs
■ Hot Plug-In Power Supplies
■ Battery-Charger Circuits
