| 型號： | SC5008QFNR |
| 廠 商： | |
| 品牌/商標: | SOUTHCHIP/南芯 |
| 產(chǎn)品類別： | 南芯/SOUTHCHIP- |
| 聯(lián)系人: | 顏先生/William |
| 電話： | 0755-82170220,21001680 |
南芯無線發(fā)射器芯片 SC5008QFNR 科瑞芯熱銷
Features
Input voltage range: 3.2V-17V
Support up to 15W power transfer
Integrated four 12mohm RDS(on) power MOSFETs
Integrated FET drivers and bootstrap circuits
Integrated 5V-100mA and 3.3V-80mA LDOs
Integrated accurate current sense for FOD
Integrated voltage and current demodulators
Compatible with 3.3V and 5V PWM logical signals
Support various types of power transmitter design in the WPC V1.3.2
UVLO/OCP/SCP/OTP

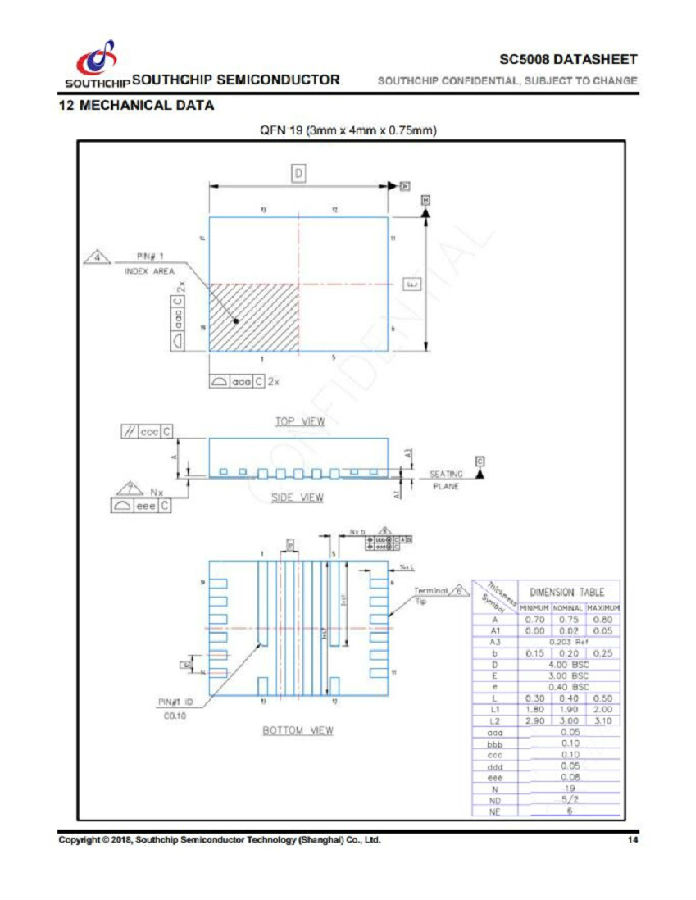

3mm x 4mm QFN package
Applications
WPC Compliant Wireless Power Transmitters
Proprietary Wireless Power Transmitters
General Wireless Power Chargers for Consumer, Industrial and Medical Applications
